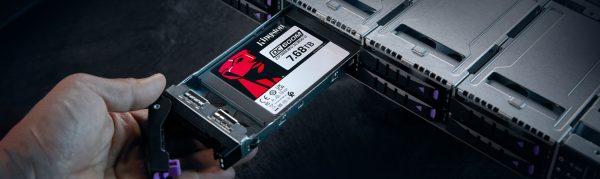

Kingston’s DC600M SSD is a fourth-generation data center SATA 3.0, 6Gbps SSD with 3D TLC NAND intended for “mixed use” workloads. The DC600M is suited for use in high-volume rack-mount servers and includes hardware-based on-board PLP. Via power loss capacitors, DC600M protects data against unexpected power failure to reduce the possibility of data loss and ensure that the drive will successfully re-initialise on the next power-up of the system. DC600M is designed to deliver latency and IOPS consistency for system integrators, hyperscale data centers and cloud service providers.
Capacities available from 480GB-7680GB1 to meet your data storage requirements.
* Hardware-based power loss protection
* Latency and IOPS consistency
* AES 256-bit self-encrypting drive
* Capacities up to 7680GB
CAPACITY
- Designed for mixed-use workload applications
- On-board Power Loss Protection (PLP)
- Consistent latency and IOPS, reliable QoS
- AES 256-bit self-encrypting drive
- Up to 560MB/s Read, 530MB/s Write
- Part Number: SEDC600M/480G
SPECIFICATIONS
| Form factor | 2.5″ |
| Interface | SATA Rev. 3.0 (6Gb/s) — with backwards compatibility to SATA Rev. 2.0 (3Gb/s) |
| Capacities1 | 480GB, 960GB, 1920GB, 3840GB, 7680G |
| NAND | 3D TLC |
| Self-Encrypting Drive (SED) | AES 256-bit encryption |
| Sequential Read/Write | 480GB – 560MBs/470MBs 960GB – 560MBs/530MBs 1920GB – 560MBs/530MBs 3840GB – 560MBs/530MBs 7680GB – 560MBs/530MBs |
| Steady-state 4k random read/write | 480GB – 94,000/41,000 IOPS 960GB – 94,000/65,000 IOPS 1920GB – 94,000/78,000 IOPS 3840GB – 94,000/59,000 IOPS 7680GB – 94,000/34,000 IOPS |
| Quality of service (latency)3,4,5(99.999) | Read/Write 480GB – 180/110 uSec 960GB – 3840GB – 200/300 uSec 7680GB – 240/170 uSec |
| Typical latency – read/write | <200 µs / <30 us |
| Hot-plug capable | |
| Static and dynamic wear levelling | |
| Enterprise SMART tools | Reliability tracking, usage statistics, life remaining, wear levelling, temperature |
| Hardware-based power loss protection | |
| Endurance | 480GB – 876TBW6, 1 DWPD (5 years)7, 1.66 DWPD (3 years)7 960GB – 1752TBW6, 1 DWPD (5 years)7, 1.66 DWPD (3 years)7 1920GB – 3504TBW6, 1 DWPD (5 years)7, 1.66 DWPD (3 years)7 3840GB – 7008TBW6, 1 DWPD (5 years)7, 1.66 DWPD (3 years) 7 7680GB – 14016TBW6, 1 DWPD (5 years)7, 1.66 DWPD (3 years)7 |
| Power consumption | Idle: 1.30W Average: 1.45W Max read: 1.6W Max write: 3.6W |
| Storage temperature | -40℃ ~ 85℃ |
| Operating temperature | 0℃ ~ 70℃ |
| Dimensions | 69.9mm x 100mm x 7mm |
| Weight | 92.34g |
| Vibration operating | 2.17G Peak (7–800Hz) |
| Vibration non-operating | 20G peak (10–2000Hz) |
| MTBF | 2 million hours |
| Warranty/support | Limited 5-year warranty with free technical support |
